The HDF-EL777 (10-bit OLED ) is a universal 7.4in 1280×800 studio viewfinder with an ultra-high contrast OLED deisply designed to convert standard ENG or cinema cameras into functional broadcast system cameras.

The system operates via multiple video inputs (SDI, HDMI, VF) while providing necessary live-production features, including real-time return video with Picture-in-Picture (PiP) and customizable Red / Green tally support via contact or voltage settings.

Dual side handles protect the monitor and allow for on-the-fly repositioning, and tactile physical controls allow quick changes to brightness, contrast, and peaking without looking away from the screen. The system integrates into existing setups using the optional quick-release bracket for one-touch mounting, and can be further adapted with separately available standard or long hoods for ambient light control.

HDF-EL777

True 10bit OLED VF system for all cameras

A studio viewfinder that transforms any camera into a live studio platform

  • HDF-777 I/O

    Broadcast System Controls & Integrations

    Dedicated control dials & quick menu navigation to adjust markers, brightness, peaking and contrast at the speed of production.

  • Ergonomic Mounting Systems

    Three levels of universal mounting systems can make any camera into a full broadcast camera channel system.

Viewfinder Specifications



    • Panel Type

      • RGB OLED

    • Display Size

      • 7.4" / 17.8 cm

    • Screen Resolution

      • 1280 × 800

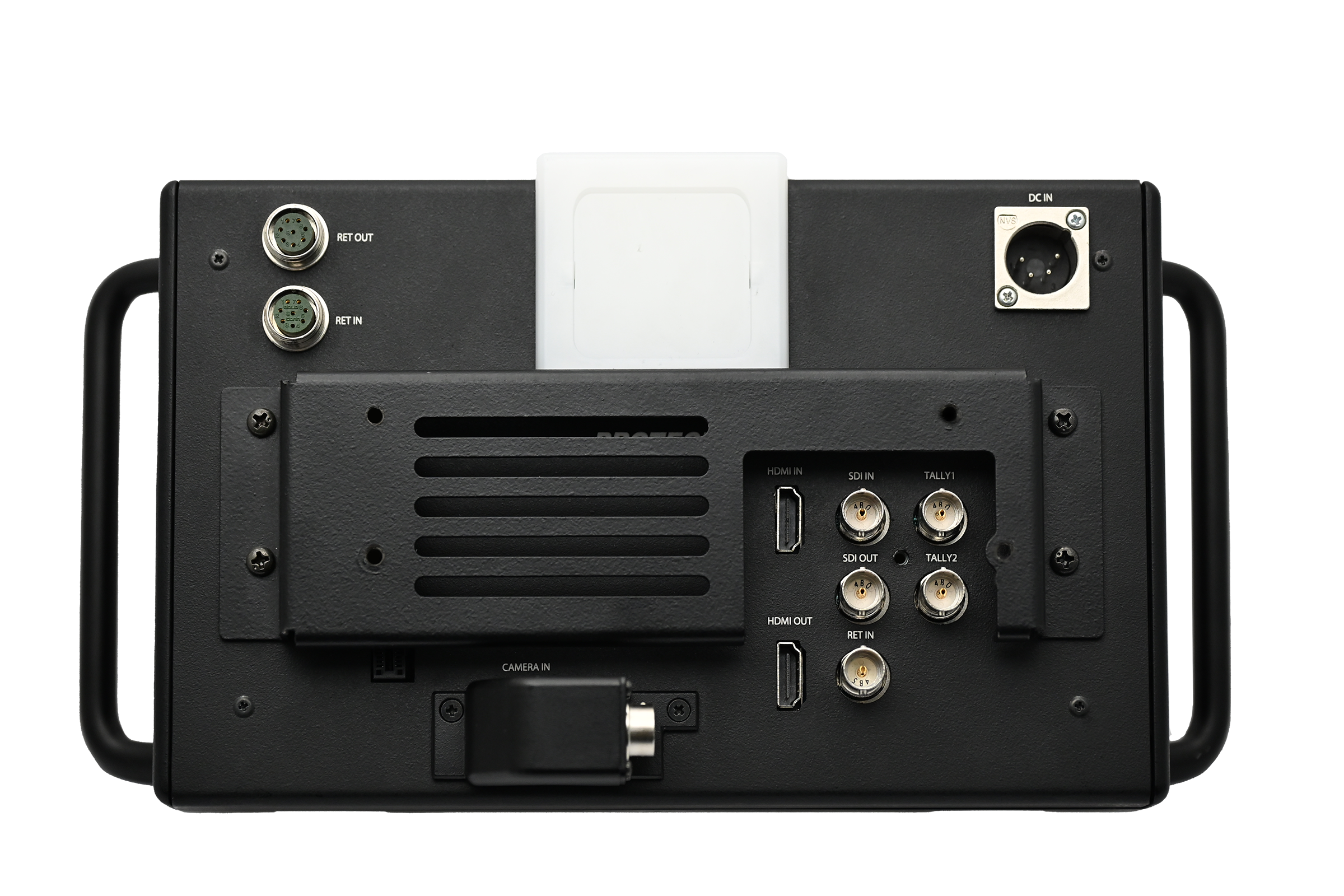

    • Inputs

      • 1x NIPROS 20-pin Input (to Fiber Optic Camera Adapter)

      • 1x 3G-SDI Input

      • 1x BNC (3G-SDI) SDI Through Out

      • 1x HDMI Video Input

    • Outputs

      • 1x BNC (3G-SDI) Video Monitor Output

      • 1x HDMI Through Out

    • Power

      • 1x XLR 4-Pin Power Input

    • Tally

      • 1x BNC Tally Input (Voltage Type / “Wet”)

  • Panel Type

    Display Size 7.4"

    Active Area 6 x 3" / 151 x 85 mm

    Screen Resolution 1920 x 1080

    Aspect Ratio 16:9

    Viewing Angle 170°

    Touchscreen No

    Maximum Brightness 350 nits / cd/m2

    Color Support 16.7 Million Colors (10bit)

    Pixels Per Inch (ppi) 315 ppi

    Finish Glossy

  • Inputs/Outputs

    1x NIPROS 20-pin Power / Video / tally
    1x 3G-SDI Input
    1x 3G-SDI Thru Out
    1x HDMI Input
    1x HDMI Output
    1x XLR 4-Pin Power Input
    1x BNC Tally Input

  • SDI (10-Bit 4:2:2 YUV)
    1080p: 59.94/50/29.97/25/24/23.98
    1080i: 59.94/50
    1080PsF: 29.97/25/24/23.98
    720p: 59.94/50

  • 12W
