Zero-Delay High Power POE++ 4K PTZ Camera Adapters

SIRIUS PTZ

This powerful plug-and-play PTZ fiber system transforms any PTZ camera into a powerful broadcast-ready SMPTE-connected camera platform. With full-power DC output, SIRIUS PTZ can power any system with the native 19.5V, as well as a second camera via a breakout or POE+++ output. With zero-latency dual-12G inputs, a re-clocked 12G-capable Return Output and TC/GEN.

Contact us for more information

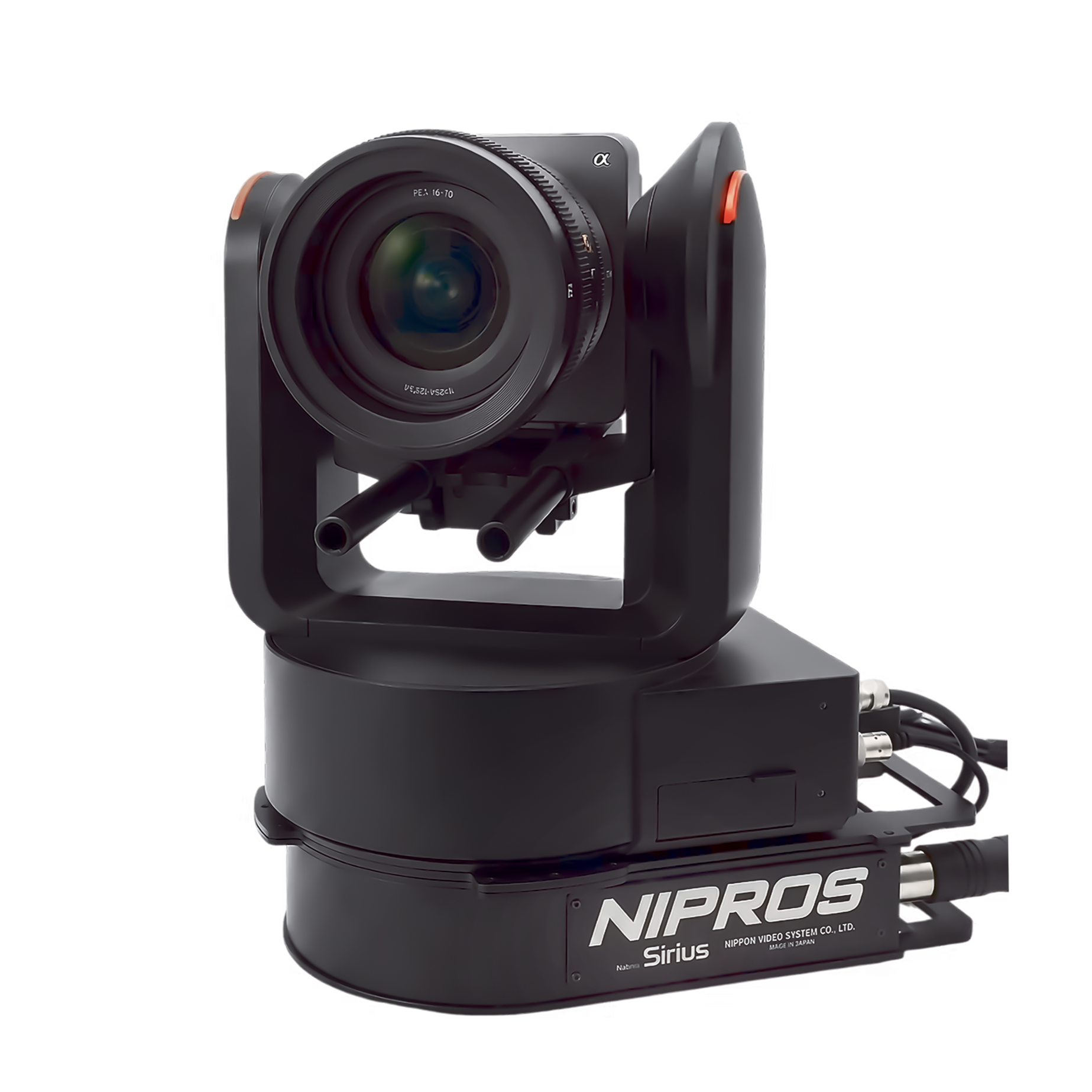

Close-up of a professional video camera with a matte black finish, mounted on a stabilizing rig, with visible branding and technical details.
Close-up of a Nipros Sirius high-precision industrial camera, black with white text, mounted on a black base with measurement markings, used for scientific or industrial imaging.

Engineered to power any PTZ Camera

Zero Latency
Zero Processing

Longer BNC cable runs from camera stations + never reboot/power-cycle again with NIPROS asynchronous signals ensuring continuous and robust TC/GENLOCK output.

All 12G-SDI Channels
Up to 2 Inputs / 2 Return

Longer BNC cable runs from camera stations + never reboot/power-cycle again with NIPROS asynchronous signals ensuring continuous and robust TC/GENLOCK output

Deploy as Multi-Camera Signal Platform

Connect a full tripod camera or second PTZ via the Multiple 12G input/outputs, high power & multiple intercom audio systems

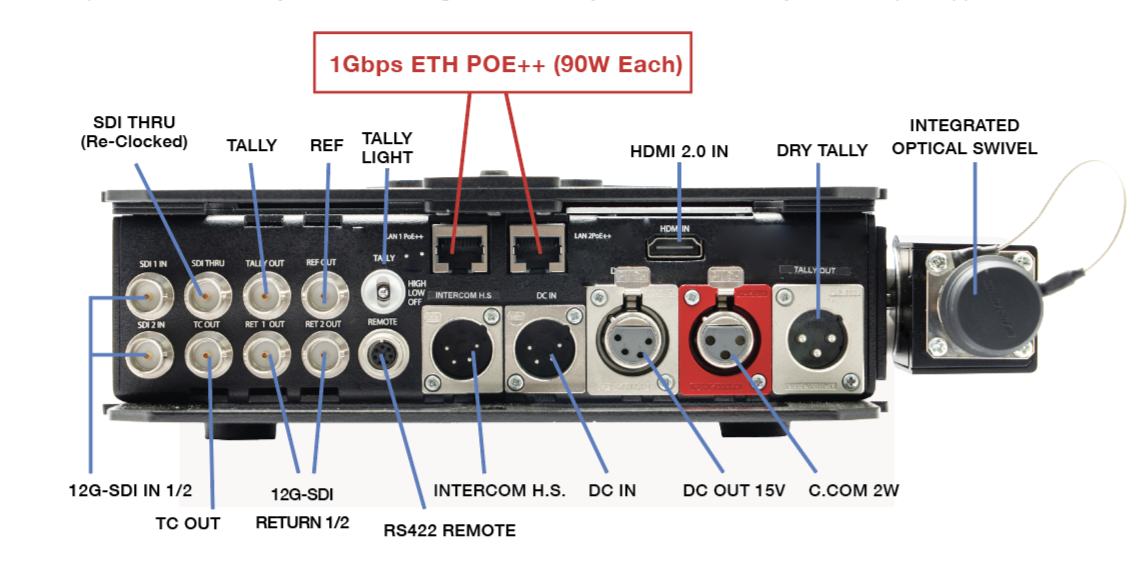

A network device showing multiple ports and connections, including SDI inputs, Ethernet port, HDMI port, and power connections. Labeling indicates functions like 1Gbps Ethernet POE++, SDI through, tally, reference, remote control, intercom, DC power, and integrated optical swivel.

90W POE++ 1GBPS ETHERNET

The only PTZ camera adapter system with true IEEE 802.3bt Type 4 (Class 8) Power over Ethernet 90W power on demand

HDMI Input for Output Overlays

All channels are independent, so analog signals like Genlock coexist alongside multiple different video formats.

No Latency, Zero Processing

All channels are independent, so analog signals like Genlock coexist alongside multiple different video formats.

Effortless installation. Intuitive design.

  • VCT-Wedge-Leveling-Feet

    Versatile Installation Options

    Multiple threaded mounting points, Built-in VCT Plate connection points for easy tripod setup, and durable silicone feet with leveling screws allow quick placement on any flat surface.

  • PTZ-QR-Plate

    Quick-Release Top-Plate

    Included captive thumbscrews and a slim PTZ-Base QR plate allow any camera base to be installed and rapidly attached or removed with thumbscrews that won’t get lost.

  • Built-In Bubble Level

    PTZ Bubble Level

    Thoughtful design is essential, including a built-in bubble level allows technicians to quickly eyeball level when mounting the system on any platform or inverted rigging.

SIRIUS PTZ lightweight compact basestation equipped with every camera control interface for modern workflows, and all the connectors are dedicated native ports:

  • 8p Sony RCP,

  • Dual independent 1GbE LAN ports with two PoE++ with full shared power output of 90W Each.

All SDI outputs are re-clocked and provide a zero-latency from the input, with an ideal SDI waveform that exactly matches the input.

  • 12G-SDI Return Cam Out 1&2

Every OUT gives two 12G-SDI re-clocked outputs adding extra convenience when you need that one extra output.

  • Timecode loop-through

  • Reference input

  • 4W Intercom inputs

  • D-SUB 25pin connector for wet and dry Tally inputs

  • 4P Intercom

SIRIUS PTZ

2RU ½ Rack Base Station

Back panel of a video or communication device with various input and output ports, including BNC connectors, power socket, and communication interfaces.
Back panel of a video or communication device with various input and output ports, including BNC connectors, power socket, and communication interfaces.
Close-up of NIPROS Orion optical fiber base station front panel, showing power switch, control buttons, indicator lights, and a circular connector port.
Close-up of NIPROS Orion optical fiber base station front panel, showing power switch, control buttons, indicator lights, and a circular connector port.

The front side of the station has quick-read status display, as well as physical intercom control dials which allow technicians to keep their eyes on the prize while using muscle memory to adjust their audio mix and levels. Finally, a full-size XLR-4Pin supports the connection of a headset using the native connector directly into the front of the station for easy comms to each camera channel.
