ORION SERIES

Compact 12G-SDI
Live Cinema System

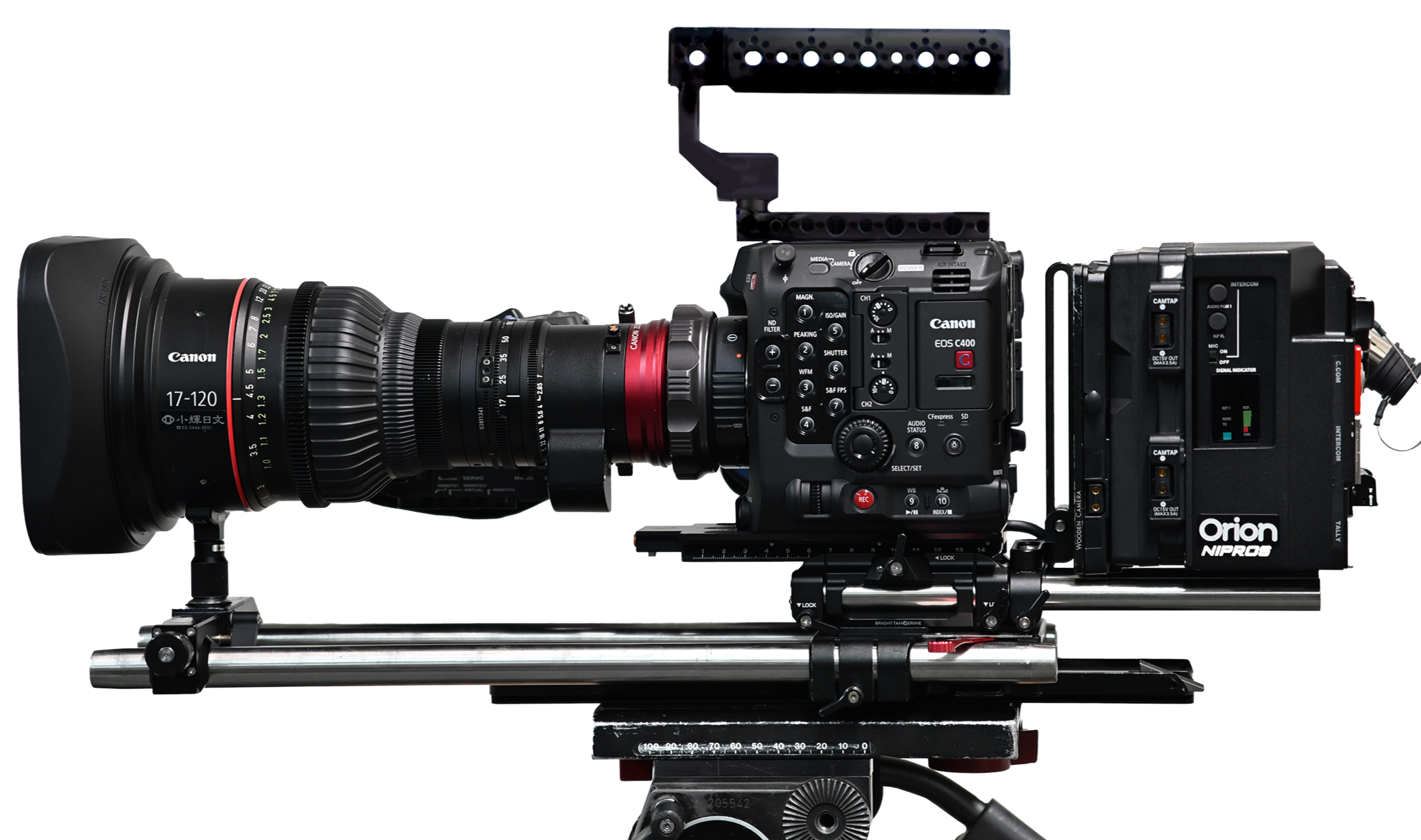

A lightweight full-featured 4K fiber optic camera adapter

True broadcast / live-stream capability is now accessible to any camera and any scale of live production environment. Engineered to meet the standard of Japanese live broadcast productions, Orion is a complete camera channel conversion–-powerful, compact, and delivering consistent mission-critical performance & reliability.

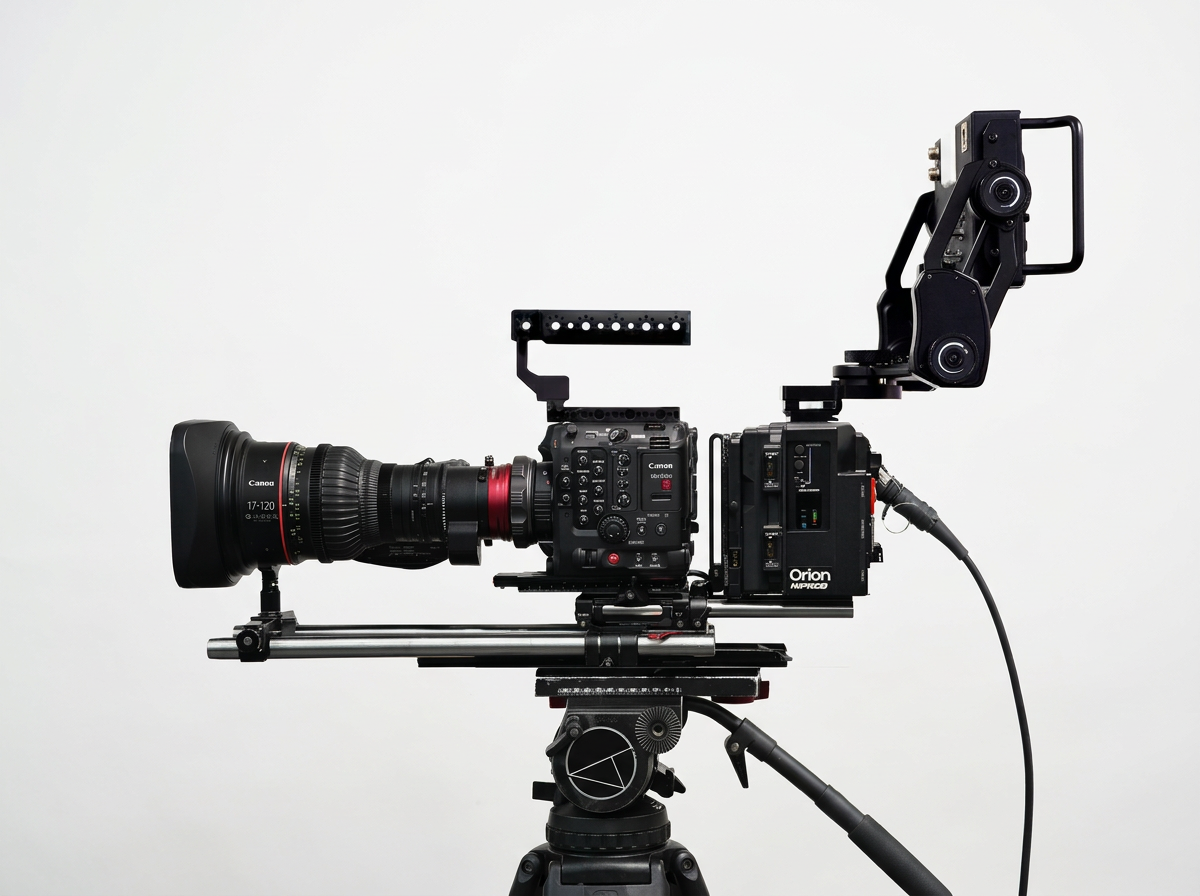

Professional cinema camera mounted on a tripod with various attachments, including a large lens, follow focus system, and electronic accessories, set against a plain white background.
Keep me updated

Transform any camera into a live system channel

  • Parallel Multi-Format Transmission: 12G/6G/3G/1.5G/SD Use any flavor of SDI, resolution, framerate etc without interference, sync issues or issues. The system treats every signal as a pure analog waveform so it delivers the signal exactly as it was output from the source, metadata, audio etc without any delay whatsoever.

  • All cameras can be supported natively without any extra configuration. multiple serial ports, 1GbE tunnel Using standard full-size connectors and signal support for all camera systems: Sony, RED, ARRI, Panasonic, Canon etc.

    8P Sony RCP, 12P Serial, LANC (2.5φ), 1GbE RJ45, 12P Dedicated LENS Iris path

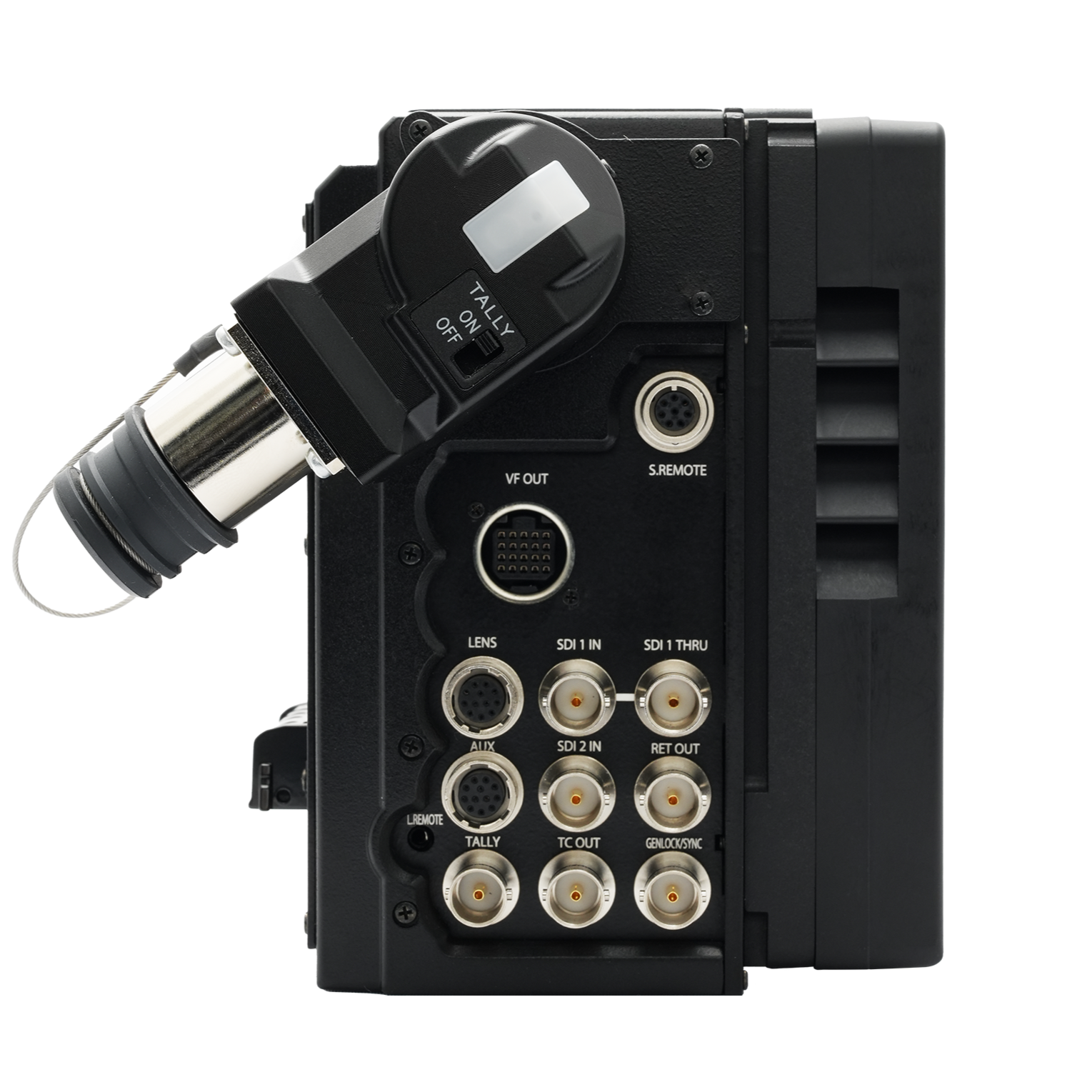

  • All SDI outputs are precision re-Clocked: RETURN & Through-Out allow longer BNC cable runs from camera stations. Base station SDI out are dual-output for higher quality-of-life in production. Allows productions to depend on the ability to run the longest possible BNC from the system in the heat of showtime.

  • The native 20 pin NIPROS VF port supplies power, video, tally, return toggle to NIPROS HDF-777/777EL broadcast viewfinder monitors and EVF-07N OLED electronic viewfinder.

Transform cameras into multicam live systems

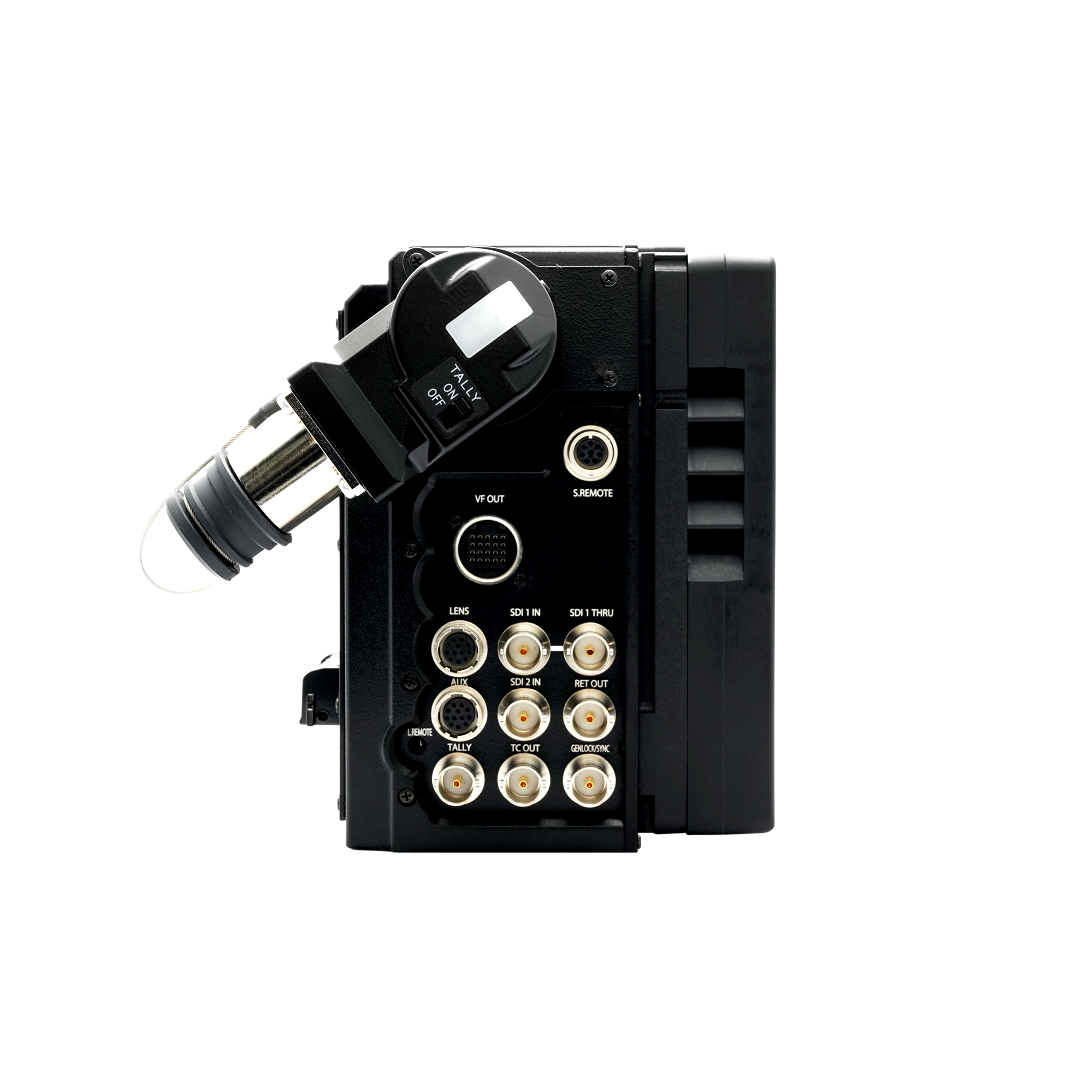

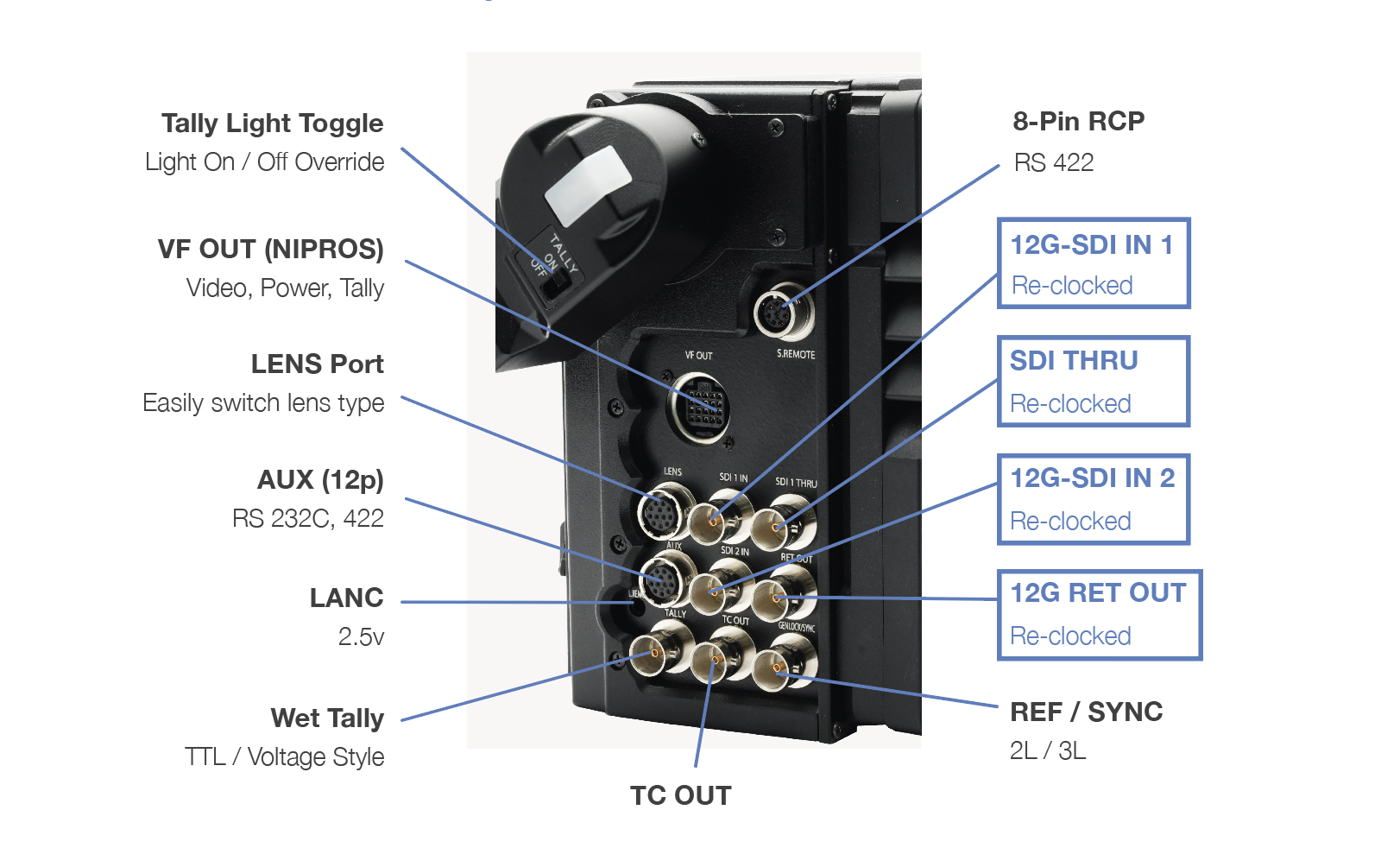

Native Connectors & Camera Control

Native connections & control capability for any camera system.

Use familiar off-the-shelf cables instead of searching for proprietary breakout squid cables:

8pin SONY RCP connector, 12P Serial Connector, 1GbE RJ45, plus 12P LENS port which can be connected directly to Canon or Fujinon servo grips.

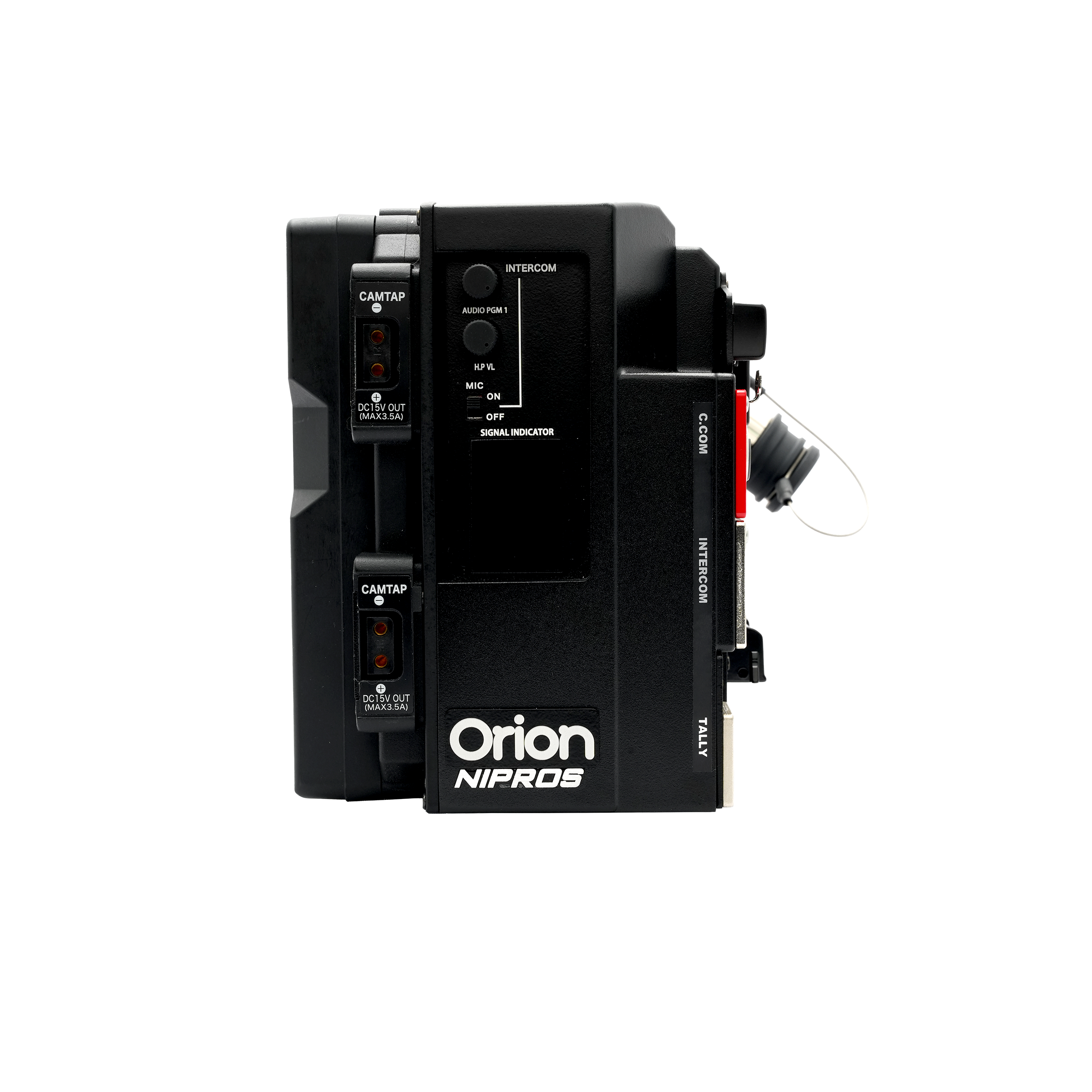

Optically-Isolated Comms

Every intercom channel is sent on its own discrete wavelength

Without any digitization, compression, distortion or crosstalk, clear instantaneous communication is possible. With latency equivalent to metal, mission-critical reliability is achieved.

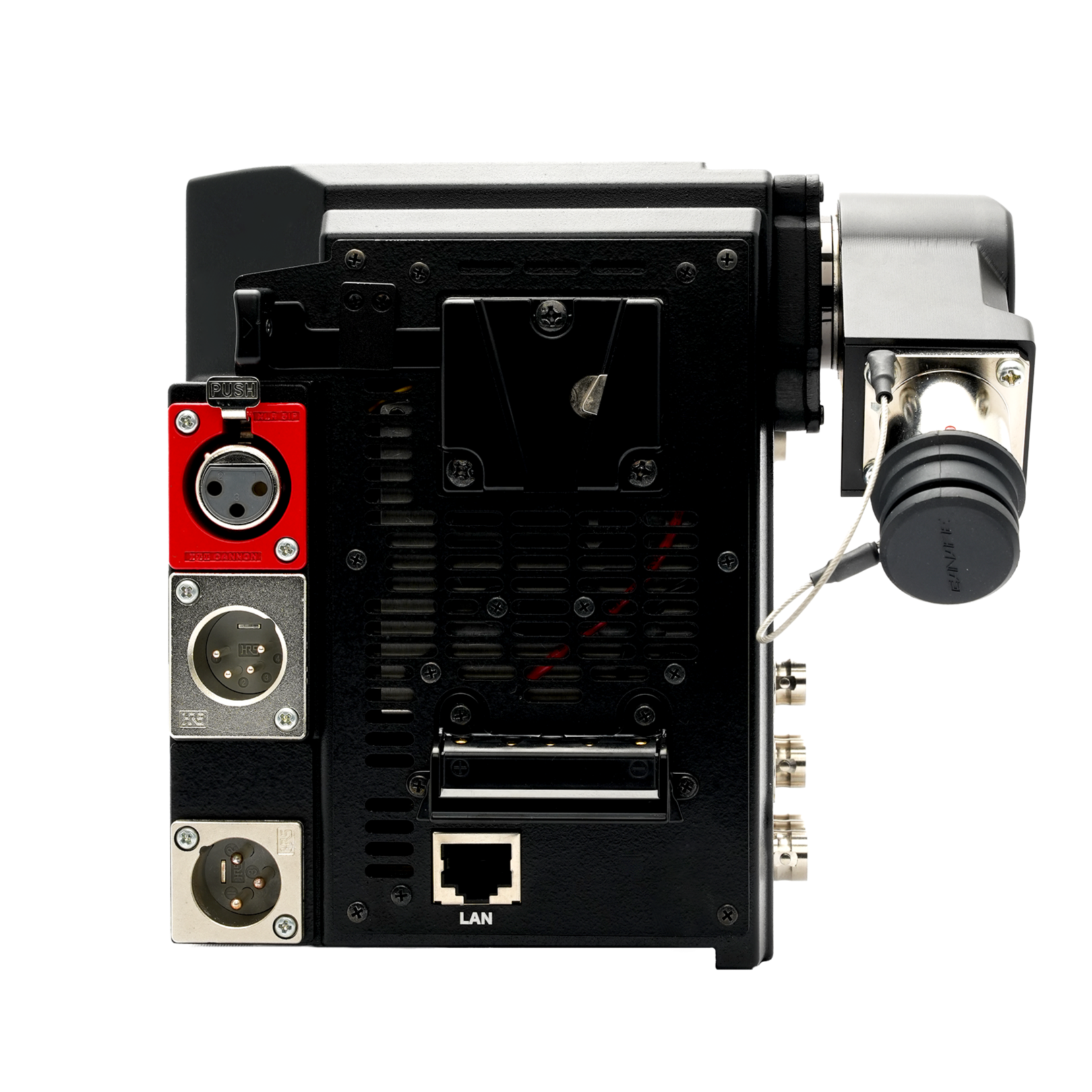

Rugged full-size connectors, along with Clear-Com embedded beltpack power, allow for incredibly simple and intuitive camera station comms.

All signal information is transmitted with transparent analog precision, arriving instantly and identically.

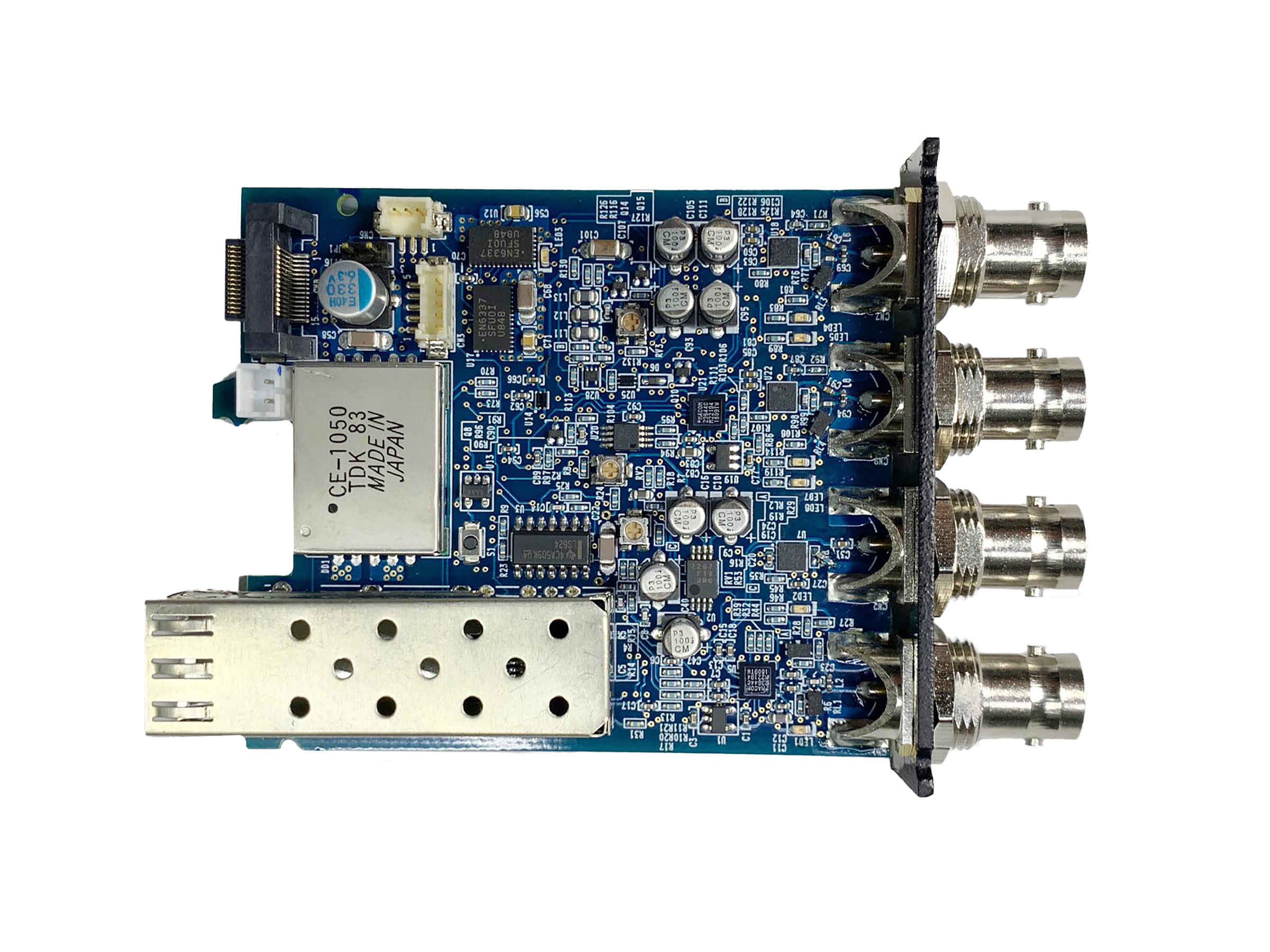

  • 12G Optical Module

    Flawless 12G-SDI

    NIPROS analog optical transmission supports all flavors of SDI up to 12G, and can easily transport different simultaneous frame rates and resolutions without complication. All ancillary information and metadata will be sent faithfully, because the system does not convert, digitize, or synchronize any signal.

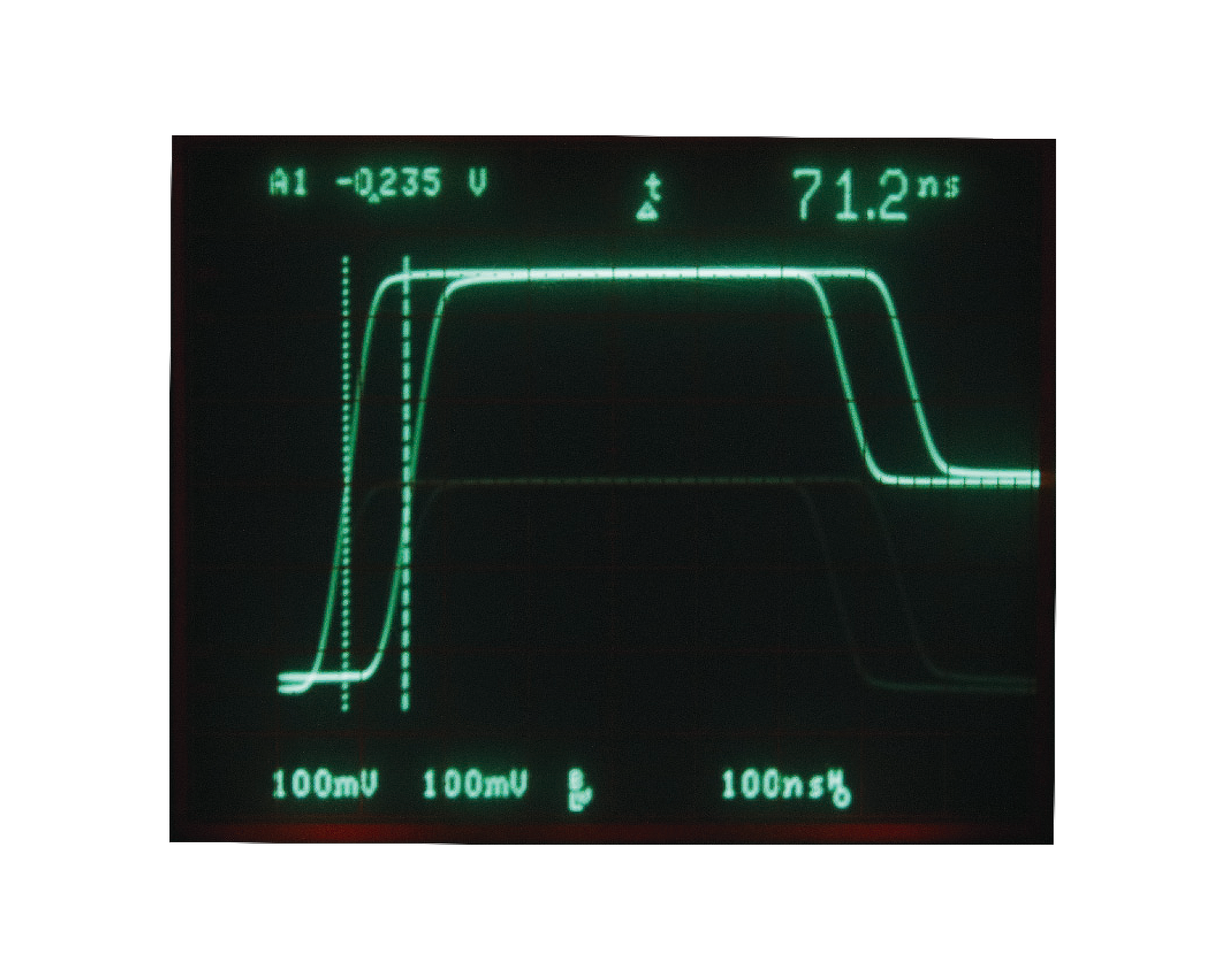

  • 71.2 ns

    No Delay. Equivalent to Metal.

    Analog transparency has been engineered into every signal channel in the system. This means all signals arrive instantaneously with zero sync issues: never lose audio, timecode or reference. Intercom without cavernous crosstalk rich noiseless Program audio can be used as a faithful on-camera recording.

  • Camera Control with Native Connections

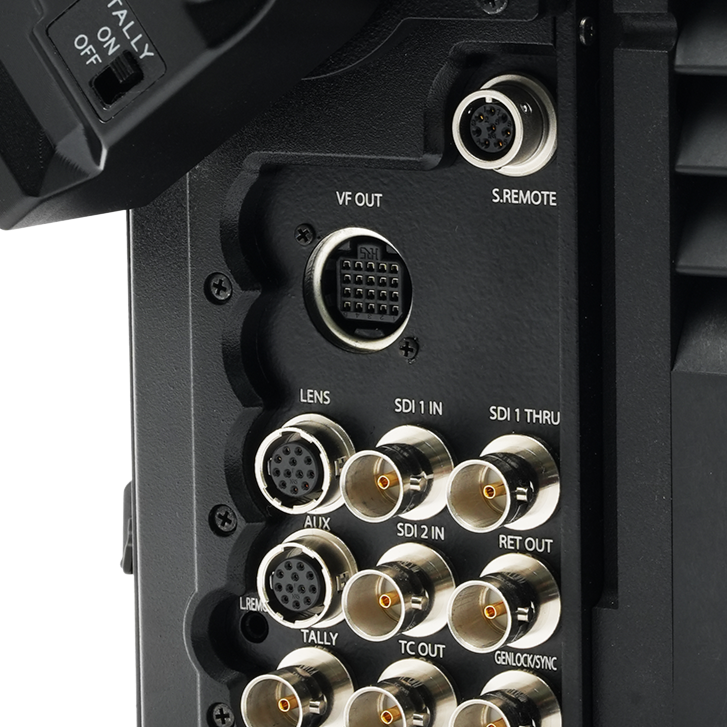

    Camera Control with Native Connections

    Multiple serial channels, lens control, LANC, wet and dry tally, as well as a 1GbE tunnel that behaves identically to an ethernet cable. The system always uses native connectors so cables can be readily identified and easily replaced, as well as the fact that full size connectors do not get destroyed constantly

Base Station

Explore All Adapters

  • Vega-R-IO

    Vega-R

    A compact and ultralight zero-latency 12G-SDI system designed with cameras from RED® at the top of mind, yet easily deployed for any camera. Native serial, LENS, LANC and 1GbE offer comprehensive control with REF, TC and wet tally allow any production to hit the ground running with no delay.

  • Polaris-profile

    Polaris

    The ultimate 12G-SDI broadcast system, with a customisable modular expansion module. 5x zero latency 12G channels, analog and digital audio, dual intercom channels and every other possible native camera connection allows Polaris to literally convert any camera operation into a complete System Camera Channel

  • Orion IO

    Orion

    A compact full-featured camera adapter designed to fit seamlessly into hybrid camera builds for the moden era of cinematic live production workdlows with 2× 12G and up to 2× 12G RET, Loaded with native control capabilities for every camera on the planet

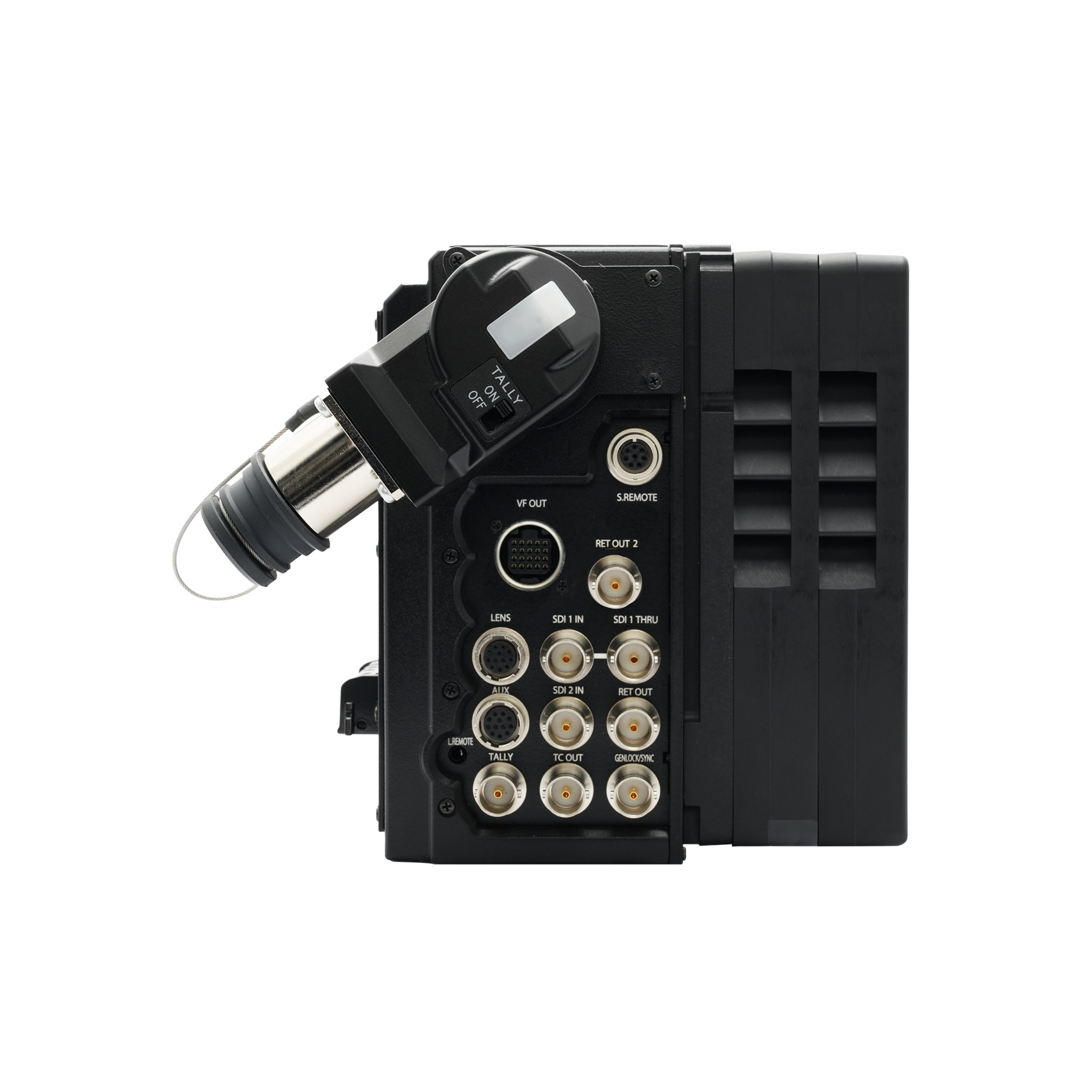

  • Orion 24V

    Orion 24V

    A unique dual-voltage feature when added to Orion the system can switch internally between 15/24V output. This feature allows highest-in-class power delivery by eliminating secondary voltage conversion. Included is also an additional 12G-SDI RET feed.
